Coprivasca
Description:

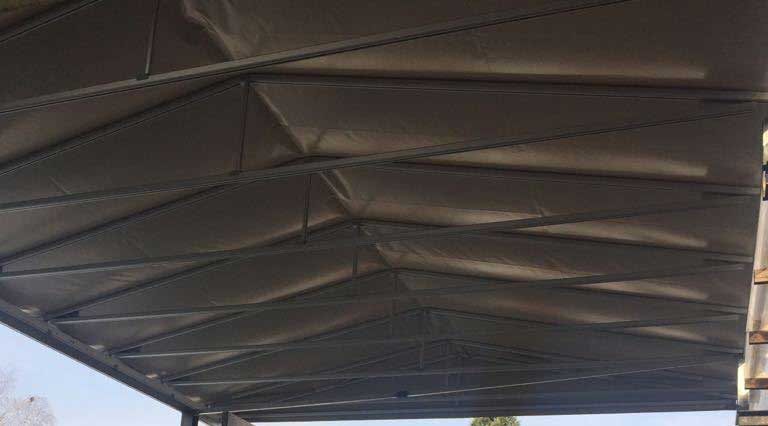

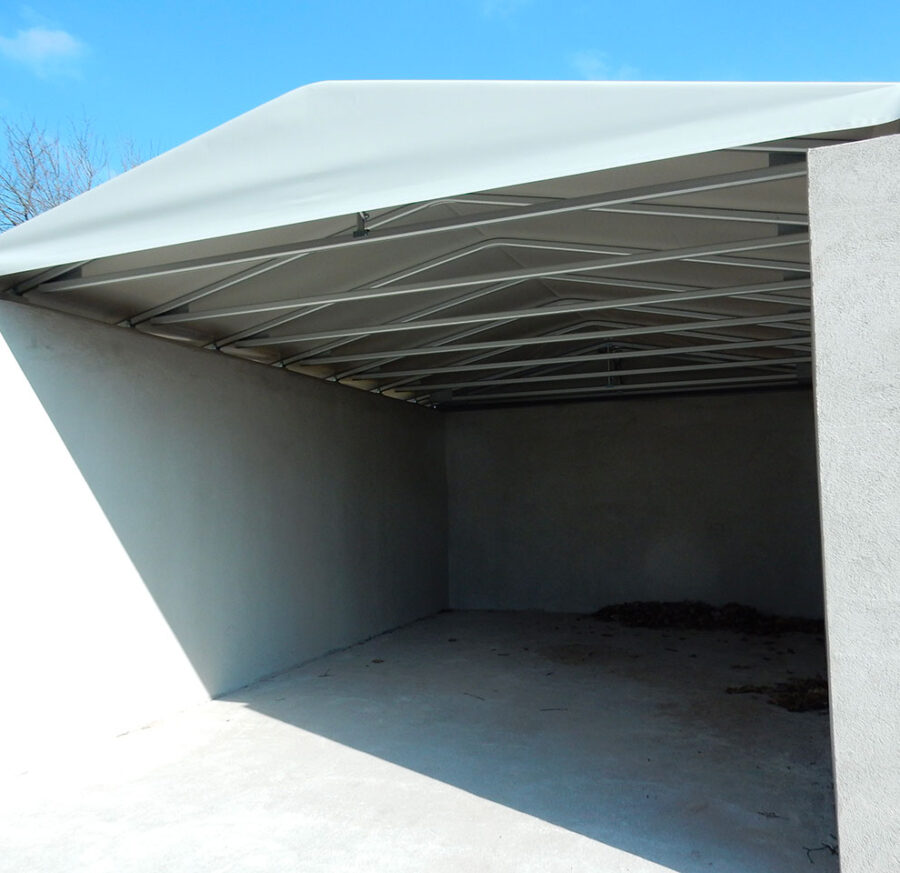

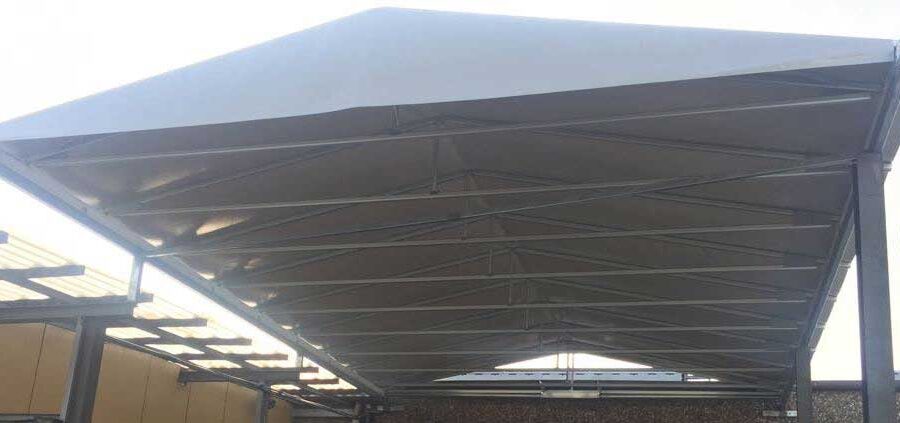

Coprivasca is an innovative and light sliding structure designed to cover outground tanks and protect their content from bad weather.
It is composed by 2 fix modules, each one measuring 54 cm, placed at the two extremities of the structure, which contribute to the structure stability. Despite they cannot be retracted, the fix modules can easily slide on the rails.
The remaining modules are retractable and have a standard dimension of 103 cm.
Coprivasca is available in 2 versions: with MANUAL or MOTORIZED handling.
Suggested for:

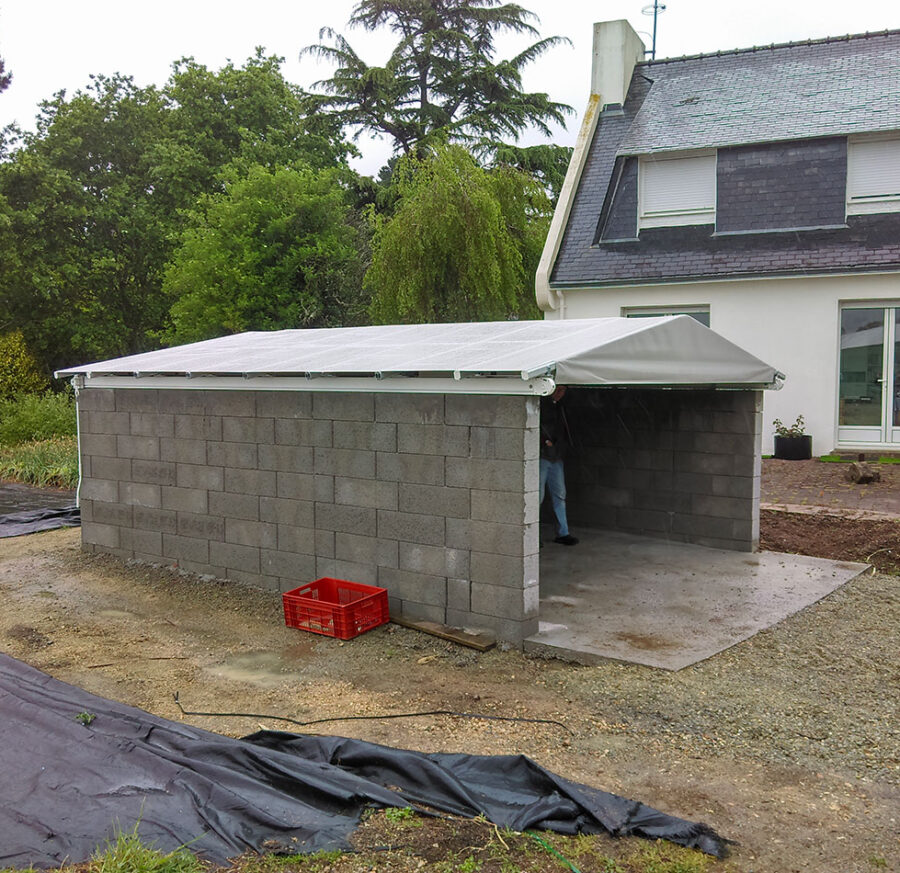

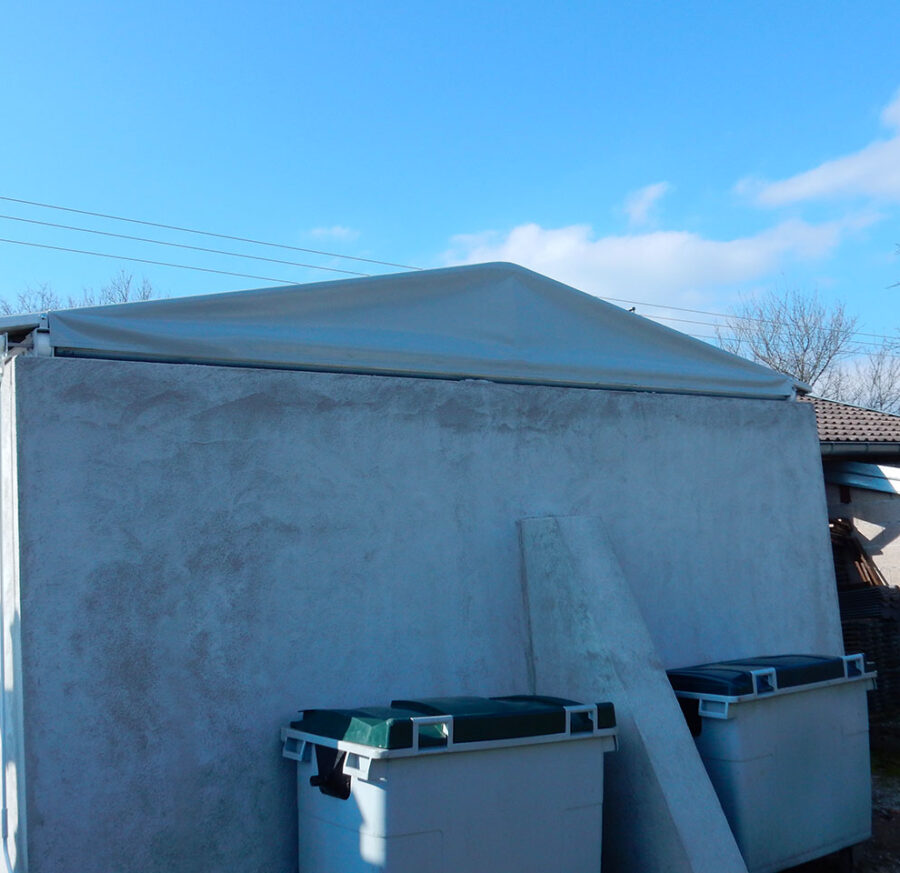

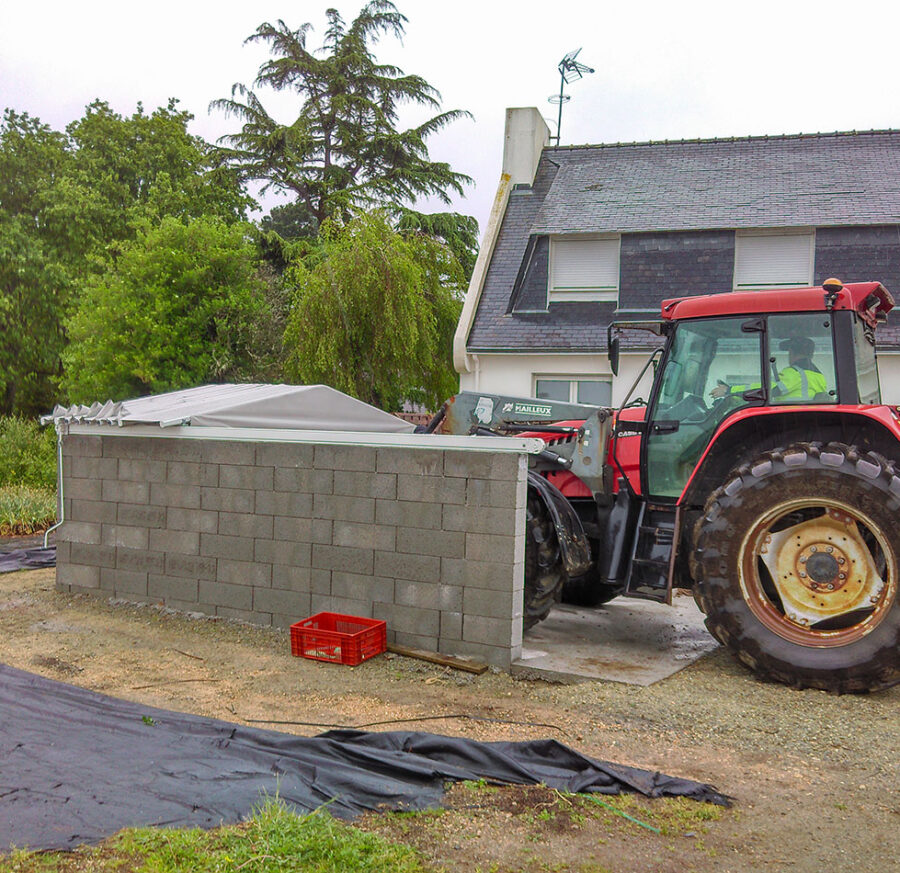

Coprivasca is a product designed to cover outground tanks, protecting their contents.
Technical Sheet
TECHNICAL SHEET FOR THE COPRIVASCA Download the technical sheet for the Coprivasca
STANDARD EQUIPMENT
The standard supply includes:
- Arched aluminium profiles mm 60×40
- Reinforcement profiles with screws
- PVC top cover, 670 g/mq
- 2 Stretching devices for ground-fixing of the front bay, placed outside the structure (only for manual version)
- Aluminium rails with sliding trolleys (for motorized version, the rail is equipped with toothed belt)
- Cross beams at each profile
- 2 gable ends made of PVC
N.B. The first and last modules are not foldable on themselves.
OPTIONALS:
- • Motorization kit
Available Sizes
COPRIVASCA (Cm)
| A | B | D |
|---|---|---|
| 520 / 623 / 726 / 829 / 932 / 1035 1138 / 1241 / 1344 / 1447 / 1550 | 500 | 60 |
| 600 | 68 | |
| 700 | 77 | |
| 800 | 83 |
PVC Types and Colours
| White | Yellow | Cream | Red | Green | Blue | Grey | Black |
|---|---|---|---|---|---|---|---|
 |  |  |  |  |  |  |  |
Installation manual
USER’S MANUAL DOWNLOAD
The following instructions for INSTALLATION, USE AND MAINTENANCE of the box, are part of the standard equipment for each box, and we strongly recommend to read them carefully to understand how to use the structure and its maintenance. It is important to respect the limits imposed by the operating manual and the rules for proper maintenance. This will enable you to act safely and maintain your Coprivasca in a good way over time.
