Porta a Strisce

Porta a Strisce (also called "stripes door") is the cheapest solution to protect workers and goods in a warehouse from bad environmental conditions such as cold, hot, noise, humidity and dust. It requires minimum maintenance, and the materials quality assures a long time durability.

Suggested for

Porta a Strisce is a product required in many areas, especially as industrial door, thermal isolation in areas of transit of staff (e.g. supermarkets), sound isolation for particularly noisy machines.

Installing a stripes door offers many advantages:

  • • reduces heat loss inside warehouses

  • • limits the diffusion in the air of toxic agents

  • • facilitates light diffusion, to enhance environmental safety

  • • blocks birds and flying bugs

  • • isolates the noises produced by mechanical machinery

  • • increases workers comfort


Choose your Porta a Strisce

There are different types of stripes:

  • - standard: standard stripes can have a width of 200, 300 or 400 mm, and a thickness of 2, 3 or 4 mm. Temperature resistance: - 30° C /+ 70° C.

  • - low temperature: low temperature stripes can have a width of 200 or 300 mm, and a thickness of 2 or 3 mm. Temperature resistance: - 40° C /+ 60° C.

  • - reinforced: reinforced stripes can have a width of 200 or 300 mm, and a thickness of 2 or 3 mm. Temperature resistance: - 30° C / + 70° C.

  • - coloured: (Aztec Red, Yellow, Orange, Black) have a width of 200 mm and a thickness of 2 mm. Temperature resistance: - 30° C to + 70° C. These stripes are ideal for welding applications.

The anchor rail models are the following:

  • - standard rail: The standard galvanized steel rail is available in 3 different types: ceiling mount, wall mount and universal mount. The wall mount type is available also in the sliding version, which allows to open and close the stripes door. ''

  • - smart rail: This guide enables a quick installation of the strips thanks to the innovative patented anchoring system that reduces installation time up to 75%. It is available in 3 different types: ceiling mount, wall mount and universal mount.

Types of guides

Click to download the sheet in PDF format

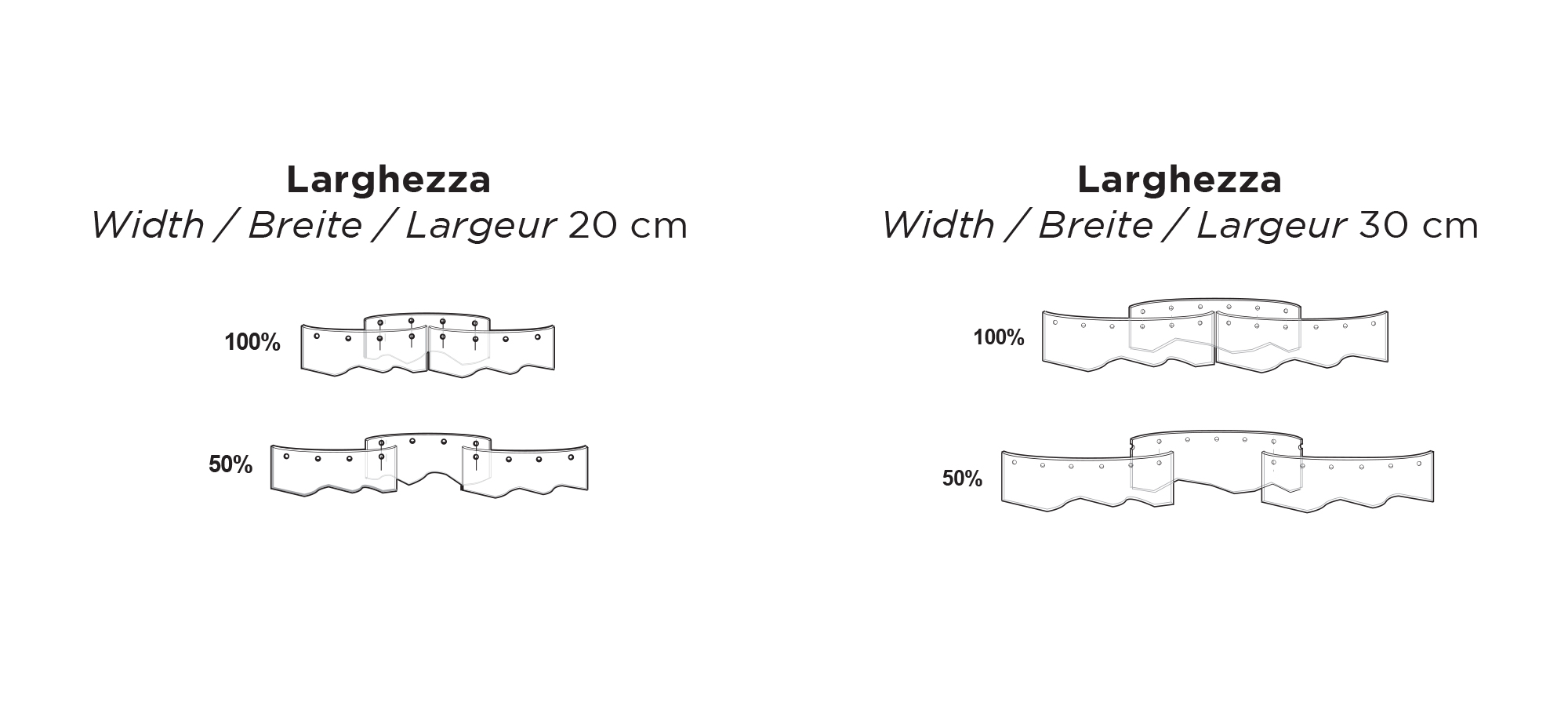

Stripes overlapping scheme

schema di sovrapposizione delle strisce

Type of stripes

Type of PVC Thickness Width of the stripe
Standard 2 mm. 200 mm.
2 mm. 300 mm.
3 mm. 300 mm.
3 mm. 400 mm.
4 mm. 400 mm.
Low temperature 2 mm. 200 mm.
3 mm. 300 mm.
Standard reinforced 2 mm. 200 mm.
3 mm. 300 mm.
Aztec Red 2 mm. 200 mm.
Yellow 2 mm. 200 mm.
Safety Orange 2 mm. 200 mm.
Black 2 mm. 200 mm.

Available sizes for the Porta a Strisce

Porta a Strisce has no width and height limits.

Available colours for the Porta a Strisce

Available colours (only for the coloured stripes model) are: Yellow, Aztec Red, Safety Orange, Black

Request informations about this product
