Copripiscina

Back

Copripiscina

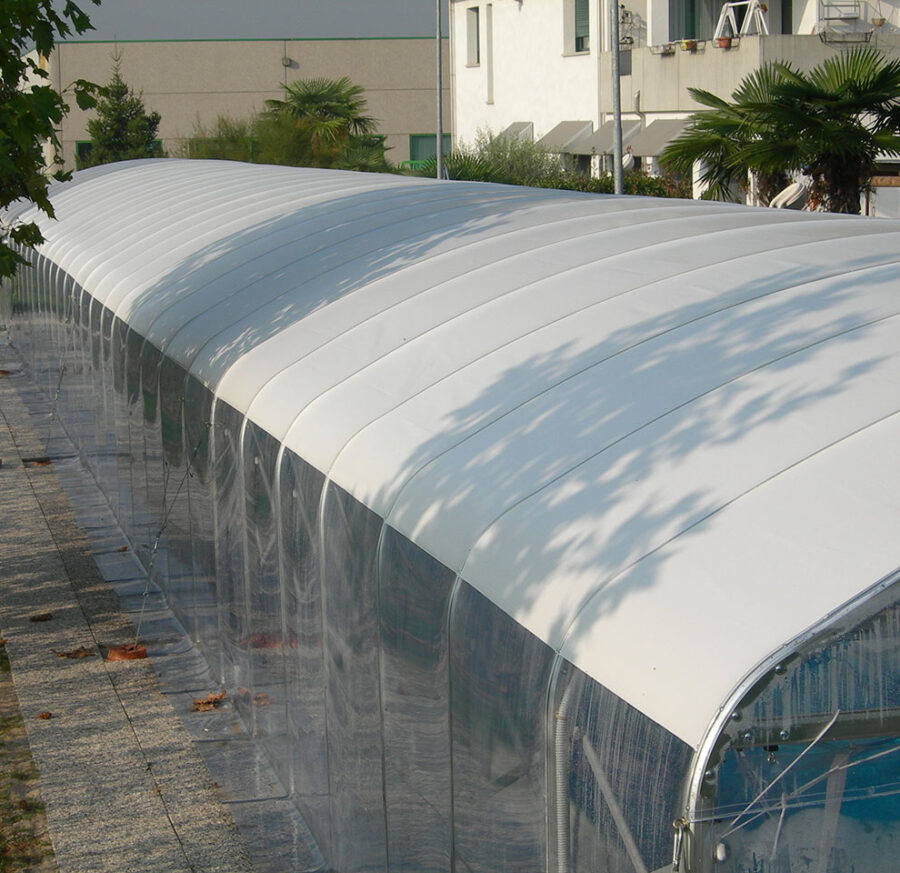

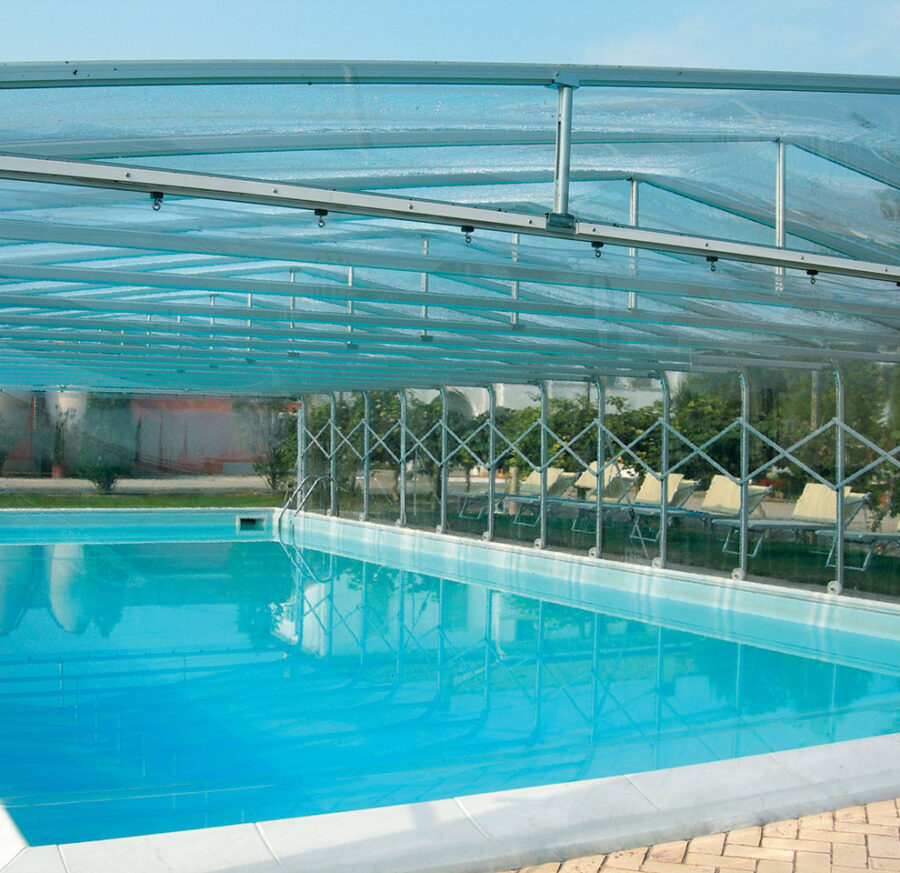

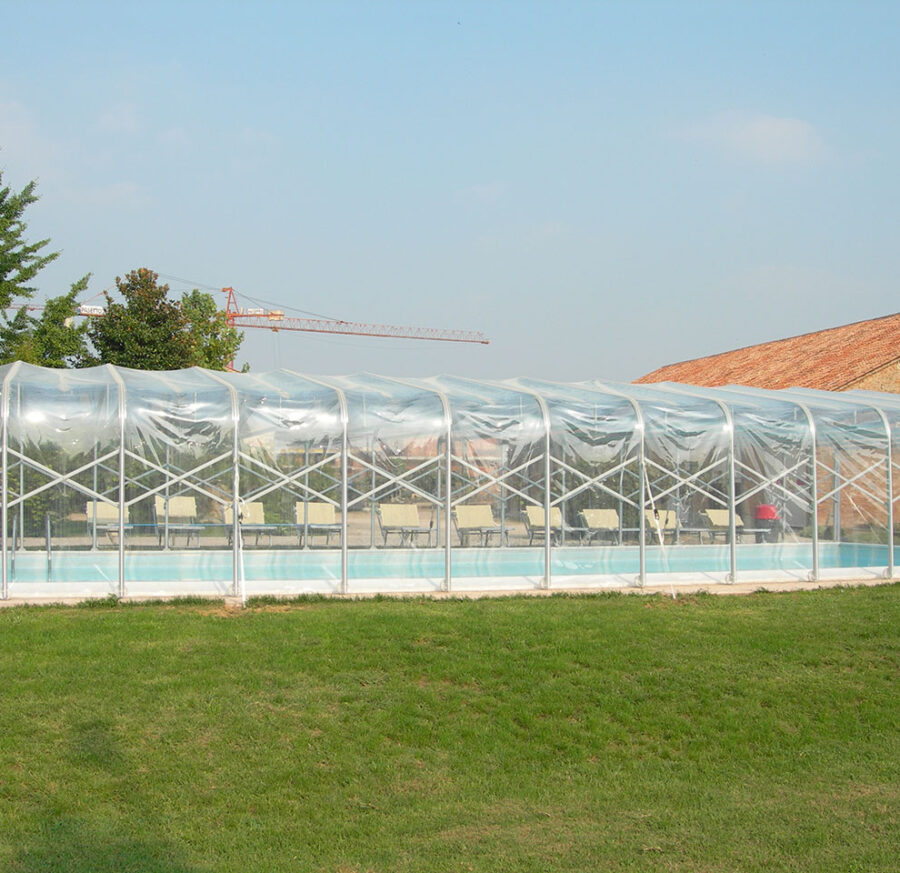

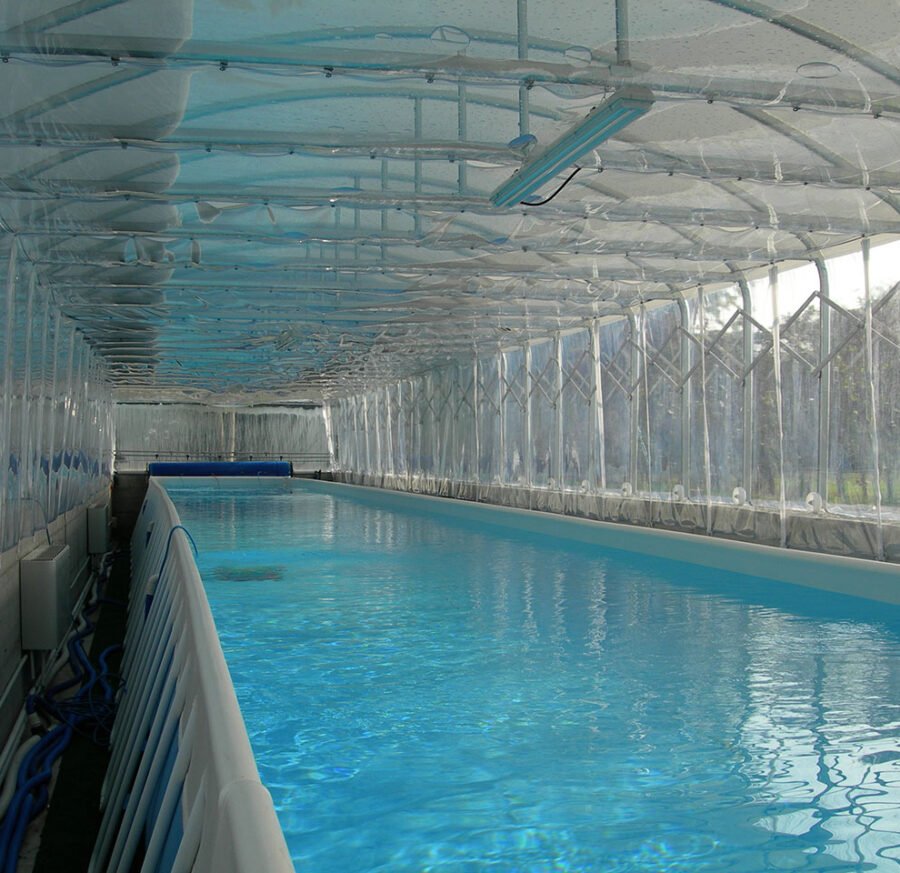

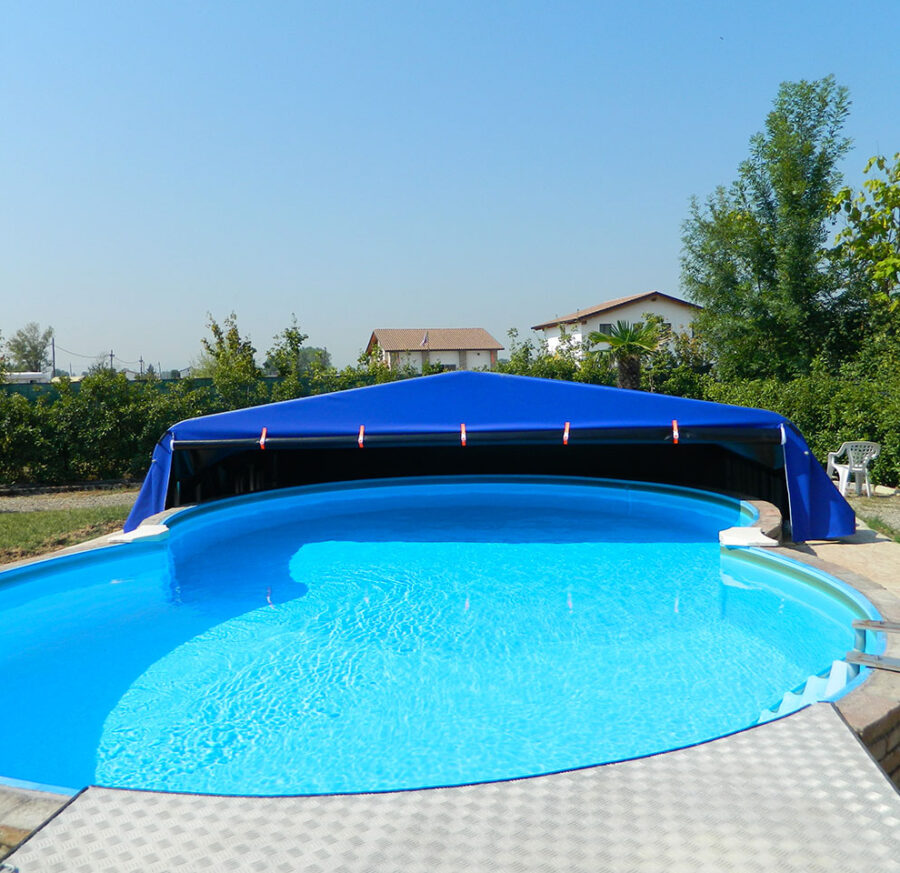

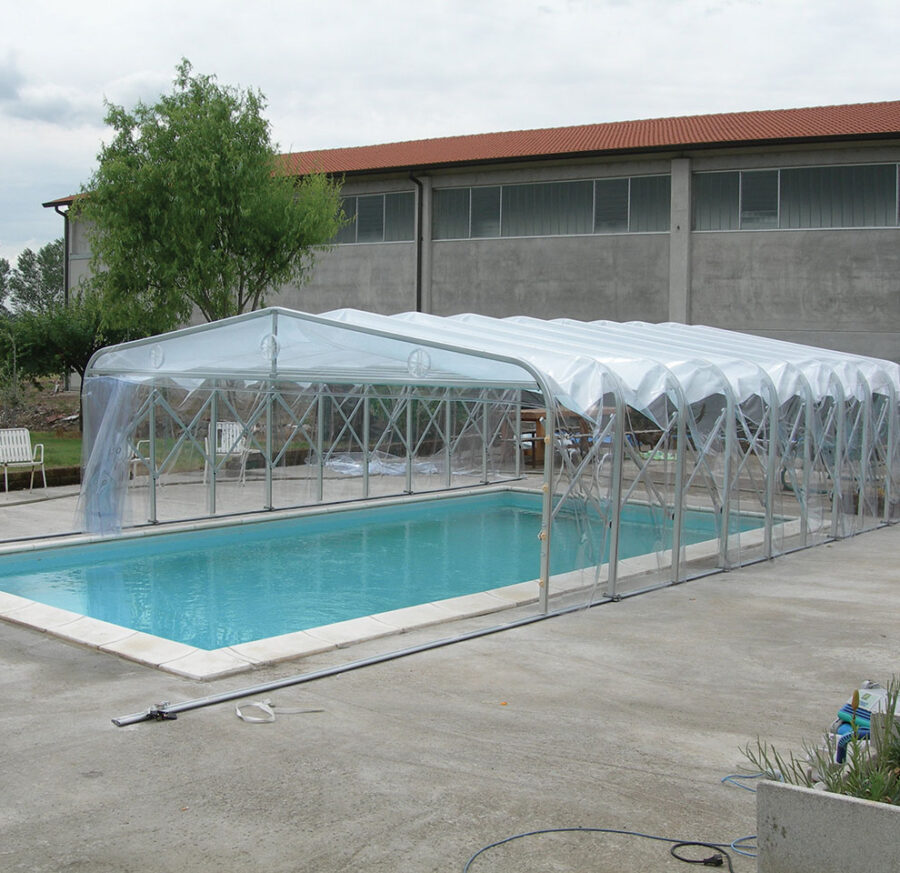

Copripiscina is a revolutionary swimming pool protection system. The lightweight aluminium frame and the PVC top cover make it a highly functional product as protection from dust and dirt, and as winter cover.

This product is patented

Suggested for

Copripiscina is the ideal product for the protection of swimming pools.

Choose your Copripiscina

Copripiscina is only available in 1 version, with passage height 200 cm; on request, it can be equipped with double top cover system, that creates an interspace of air which restricts the heat exchange with the outside.

Technical Sheet for the Copripiscina

Download the technical sheet for the Copripiscina

Standard equipment

COPRIPISCINA C = 200 CM

  • • Arched aluminium profiles mm 60 x 40, colour silver

  • • Galvanized lacquered RAL 9006 steel crosses cm 120 x 120, with screws and slides

  • • PVC top cover, 550 g/m² flame retardant cl. 2, with inserts in transparent PVC Cristalplus

  • • 2 aluminium crossbeams for the sliding curtains with slides and angles

  • • 2 PVC sliding curtains with swivel closures (tourniquet)

  • • PVC gable ends with window in micro-perforated material

  • • Straps with ratchets to stretch the structure

  • • Nylon wheels with screws, diam. 125 mm

  • • 2 Metal ground-fixing brackets and 2 carabiners


Starting from the width of cm 500, the main structure will be reinforced with aluminium crossbeams and other reinforcement elements on every profile.

Starting from the length of cm 700 (only for mobile version): eyelets placed on the lateral profile for ground-fixation through straps and stakes/ballasts (not supplied by Intenda) ''


Optionals:

  • • Solid rubber tire, diam. 260 mm

  • • Steel wheel with angle and floor rail

  • • Big impeller kit

  • • Transparent PVC Cristal window

  • • Additional window in micro-perforated material

Available Sizes for the Copripiscina

Copripiscina passage height 200(cm)
A B C
515 / 618 / 721 / 824 / 927 from 300 to 700 200

Copripiscina h. 200 sizes

The box is composed by modules of cm 103 each, so there are no lengths limits

This model is delivered partly pre-assembled

Available Colours for the Copripiscina

White

White

Cream

Cream

Beige

Beige

Corda

Corda

Grey

Grey

Green

Green

Blue

Blue

Red

Red

Yellow

Yellow

Transparent Cristal

Transparent Cristal

User's manual download

The following instructions for INSTALLATION, USE AND MAINTENANCE of the box, are part of the standard equipment for each box, and we strongly recommend to read them carefully to understand how to use the structure and its maintenance. It is important to respect the limits imposed by the operating manual and the rules for proper maintenance. This will enable you to act safely and maintain your Copripiscina in a good way over time.

Download the manual in PDF format (1 MB)

Request informations about this product
