Maxi Box

Description:

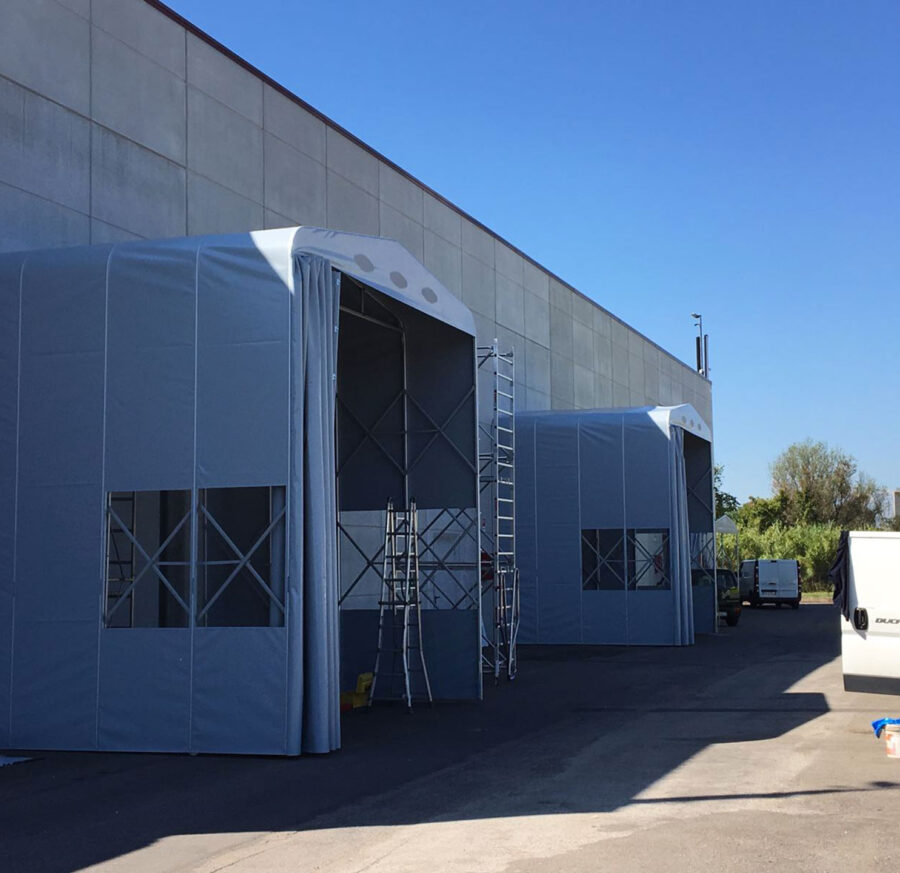

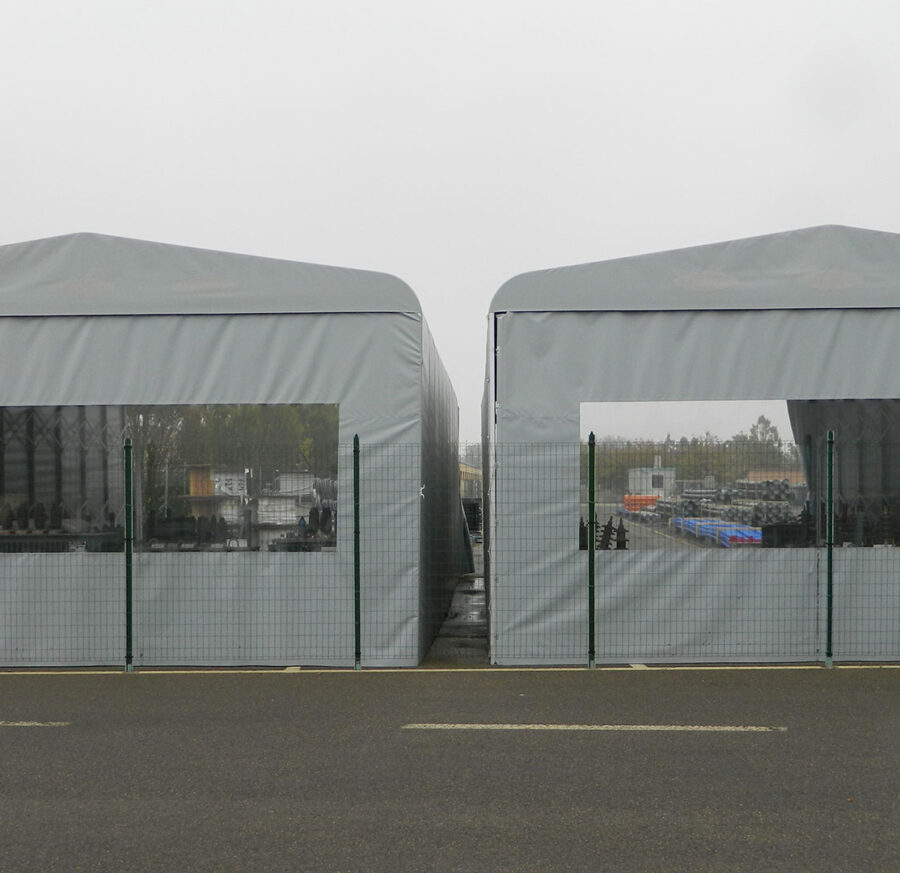

Maxi Box is ideal for covering LARGE VEHICLES or TRUCKS up to 3.2 m heigh. Like the other extensible tunnels of the range, it is the perfect cover against bad weather (sun, rain, hail) and can be closed in a few moments, despite the considerable size.

Suggested for:

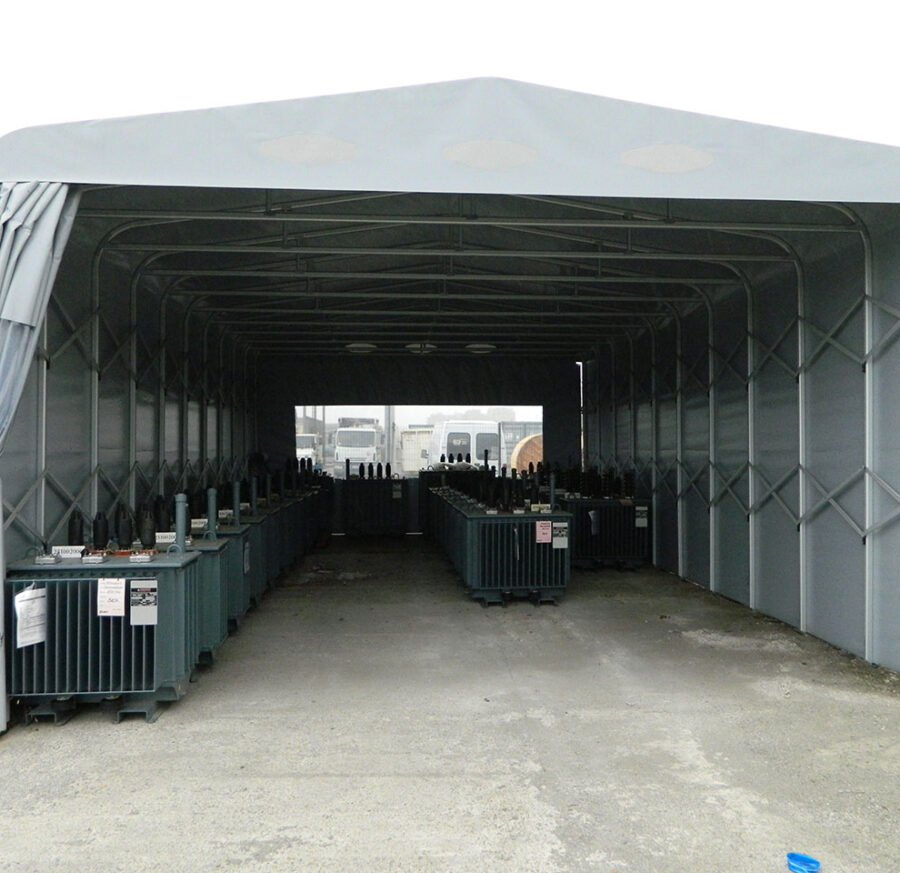

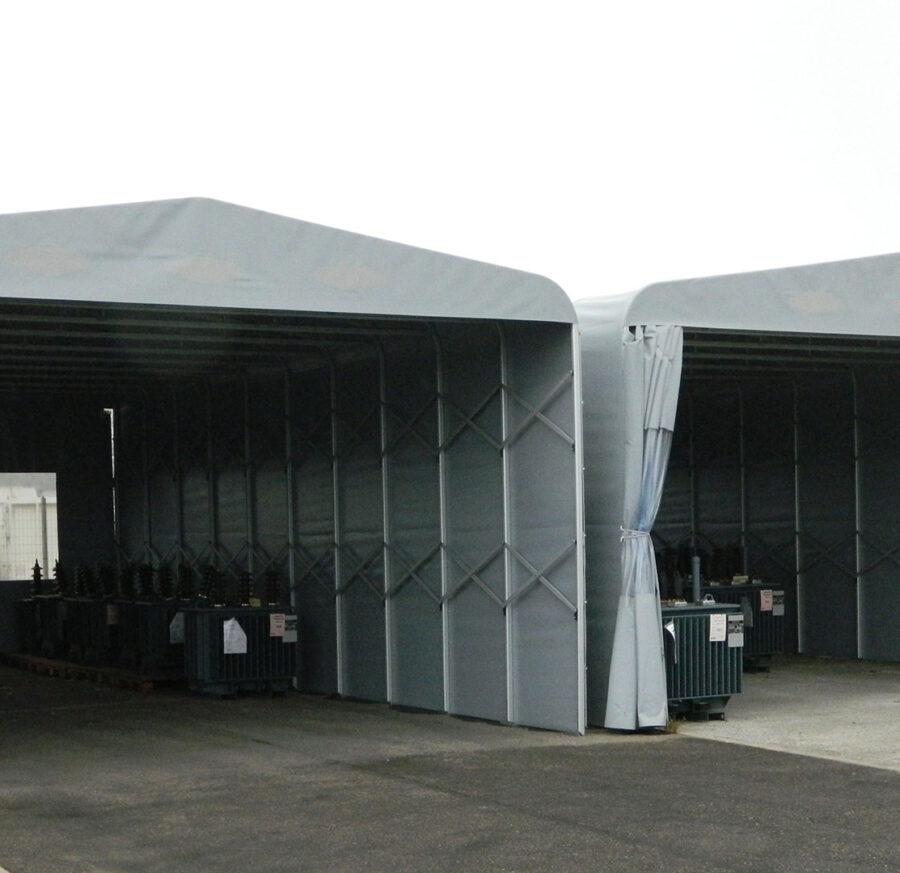

Thanks to its big dimensionsMaxi Box can be used for different purposes: as a cover for small trucks and vans, as a small WAREHOUSE or for STORAGE.

Choose your Maxi Box:

Maxi Box is available in 2 versions:

  • base: cheaper model, after installation the structure cannot be packed up quickly
  • mobile: equipped with wheels to let the structure scroll on the ground and tension bars to lock quickly the structure in its open position

Technical Sheet

TECHNICAL SHEET FOR THE MAXI BOX

TECHNICAL SHEET FOR THE MAXI BOX Download the technical sheet for the Maxi Box

STANDARD EQUIPMENT
The standard supply includes:

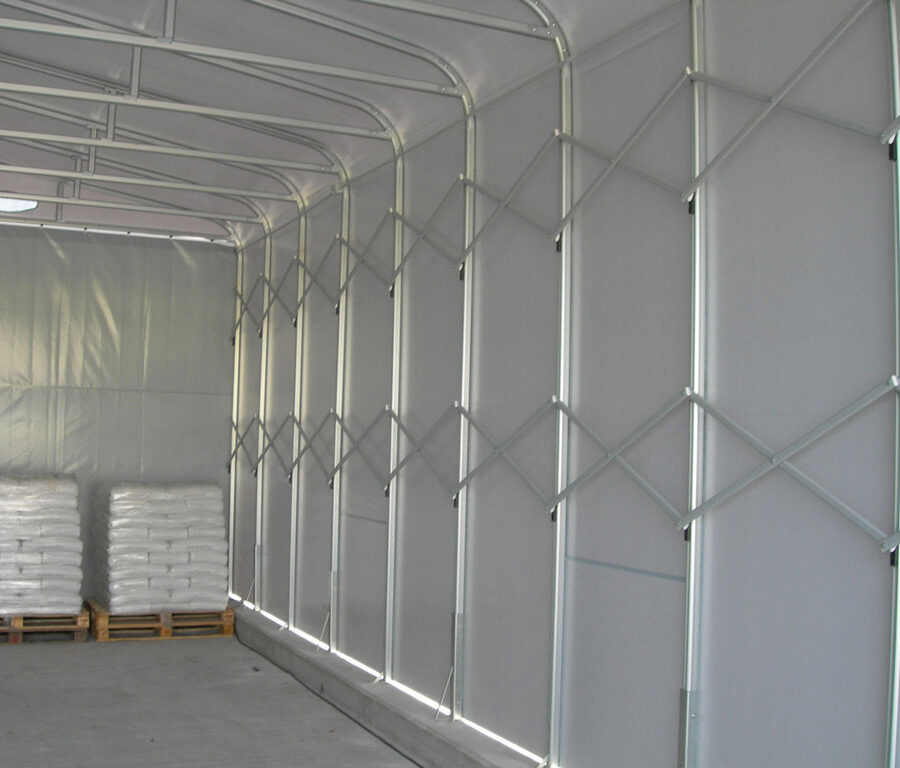

  • Arched aluminium profiles mm 60 x 40, colour silver
  • Galvanized and lacquered RAL 9006 steel crosses cm 120 x 120, with screws and slides, coupled in height
  • PVC top cover, 550 g/m² flame retardant cl. 2, standard width 103 cm
  • 2 PVC sliding curtains with zink-coated iron hooks and elastic rope for zig-zag closure
  • 2 Aluminium crossbeams for the sliding curtain with slides and angles
  • 2 PVC gable ends with windows in micro-perforated material SOLTIS 92
    Starting from the width of cm 500, the structure will be reinforced with aluminium crossbeams and other reinforcement elements on every profile. The sliding curtain will be equipped with steel rail and sliding trolleys.



BASE VERSION

  • Galvanized steel ground-fixing brackets

MOBILE VERSION

  • 2 Metal ground-fixing brackets
  • Lacquered RAL 9006 steel tension bars with screws
  • Nylon wheels with screws, mm 200
  • Stretching devices (only for tunnels with a module width lower than cm 103)
  • Internal belt ratchets NB. Pegs with eyelet not included (diam. eyelet hole 12 mm.)

OPTIONALS:

  • Solid rubber weels diam. mm 260
  • Steel wheels with angle and floor rails
  • Stretching devices (only for base version)
  • Big impeller kit
  • Transparent PVC Cristal window
  • Additional window in micro-perforated material

Available Sizes

MAXI BOX (Cm)

ABCD
515 / 618 / 721 / 824400320371
500320376
600320386



The box is composed by modules of cm 103 each, so there are no lengths limits.

This model is delivered partly pre-assembled.

PVC Types and Colours

WhiteBeigeCordaGreyGreen

Installation manual

USER’S MANUAL DOWNLOAD

The following instructions for INSTALLATION, USE AND MAINTENANCE of the box, are part of the standard equipment for each box, and we strongly recommend to read them carefully to understand how to use the structure and its maintenance. It is important to respect the limits imposed by the operating manual and the rules for proper maintenance. This will enable you to act safely and maintain your Maxi Box in a good way over time.

Download the manual in PDF format (1 MB)
